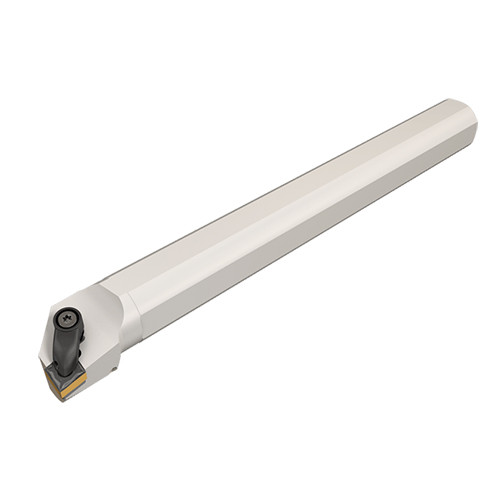

A32T DCLNR-12-JHP

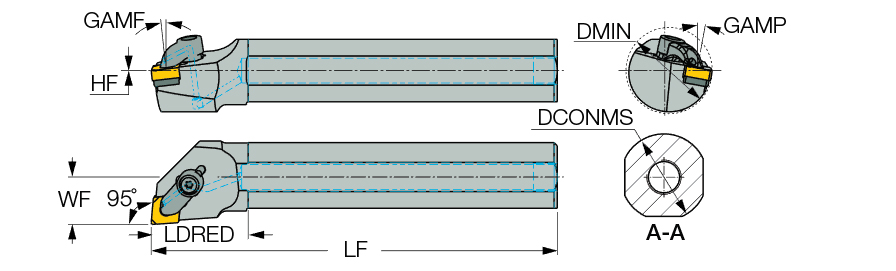

| Connection Diameter Machine Side (DCONMS) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 300 mm | Shank Type | Round Shank w/3 Flats |
| Reduced Body Diameter Length (LDRED) | 45 mm | Application | | Int. 80° Diamond 95° Approach | |
| Shank Height (H) | 14.5 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Width (WF) | 22 mm | Rake Angle Radial (GAMF) | 10 Degrees |
| Master Insert Identification (MIID) | CNMG 432 | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 40 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
Product Features
| Family Description | Boring bars carrying the negative 80° rhombic inserts, for heavy internal turning applications. | Country of Origin | Israel |
Shipping Info
Package Weight
3.567
