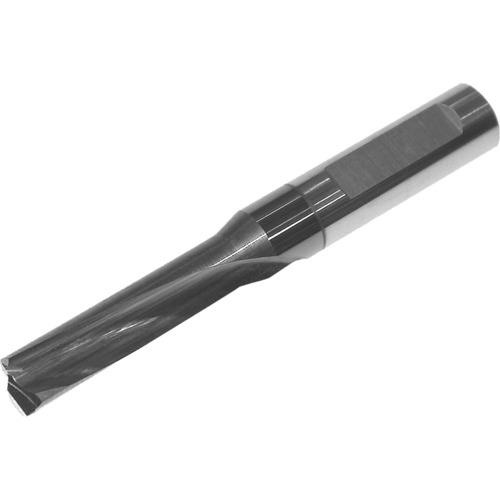

ECM 05R-2.25D CTPP435 ECOCUT MINI
Boring Bar; 6 mm Shank Dia. × 0.197″ Min Bore Dia. × 1.457″ LF ; 0.008″ Corner Radius ; Carbide ; Uncoated
| Connection Diameter Machine Side (DCONMS) | 6 mm | Front End Width (a) | 0.098″ |
| Minimum Bore Diameter (DMIN) | 0.197″ | Corner Radius (RE) | 0.008″ |
| Functional Length (LF) | 1.457″ | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Length Group | 2.25xD |
| Coating | Uncoated | Tool Type | Boring Bar|Turning |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Austria |
Shipping Info
Package Weight
0.037
