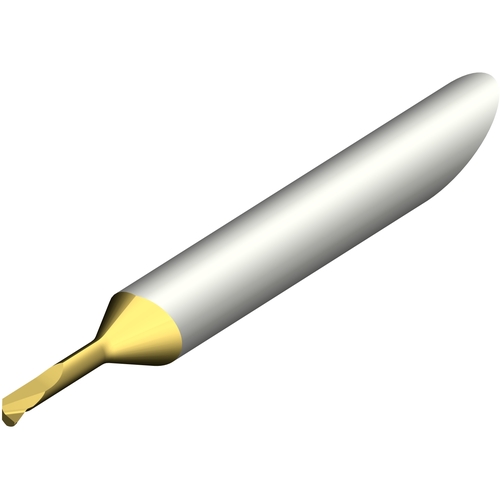

CXS-04T098-10-1706R 1025 COROTURN XS INSERT
Boring Bar; 4 mm Shank Dia. × 0.067″ Min Bore Dia. × 0.0275″ Max Bore Depth × 30.71 mm LF ; 0.1 mm Corner Radius ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Connection Diameter Machine Side (DCONMS) | 4 mm | Grade | 1025 |
| Minimum Bore Diameter (DMIN) | 0.067″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Functional Length (LF) | 30.71 mm | Front End Width (a) | 0.7 mm |
| Head Length (LH) | 0.2 mm | Corner Radius (RE) | 0.1 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Depth Maximum (CDX) | 0.0275″ |
| Coating | TiAlN | Cutting Edge Material | Carbide |
Product Features
| Country of Origin | United Kingdom |
Shipping Info
Package Weight
.029
