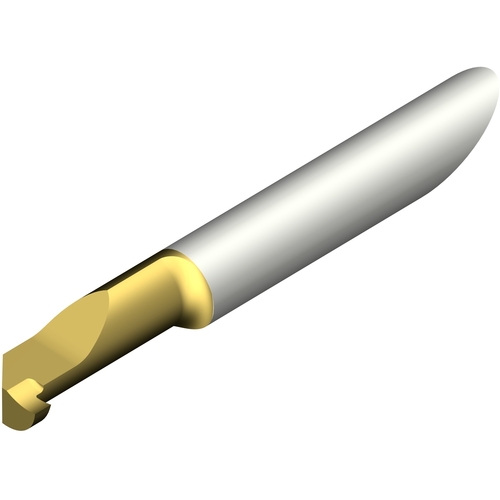

CXS-04G100-4210R 1025 COROTURN XS INSERT
Boring Bar; 4 mm Shank Dia. × 0.165″ Min Bore Dia. × 0.0315″ Max Bore Depth × 28.98 mm LF ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Connection Diameter Machine Side (DCONMS) | 4 mm | Grade | 1025 |
| Minimum Bore Diameter (DMIN) | 0.165″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Functional Length (LF) | 28.98 mm | Front End Width (a) | 1 mm |
| Head Length (LH) | 0.8 mm | Cutting Depth Maximum (CDX) | 0.0315″ |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | Grooving/Parting-off |
Product Features
| Country of Origin | United Kingdom |
Shipping Info
Package Weight
0.031
