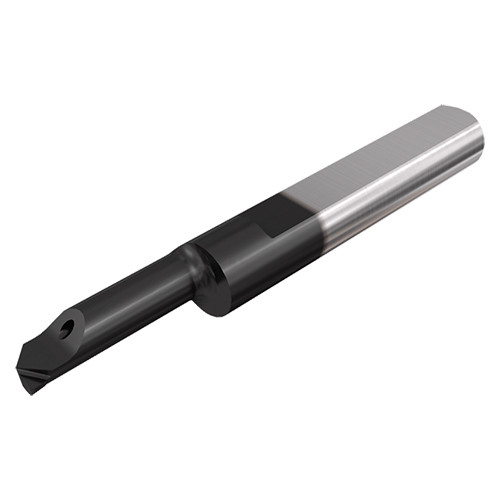

PICCO RHD 050.7-20N IC902
Boring Bar; 0.278″ Shank Dia. × 0.268″ Min Bore Dia. × 0.024″ Max Bore Depth × 0.748″ LU × 1.614″ LF × 4″ OAL ; 0.006″ Corner Radius ; Carbide ; TiAlN

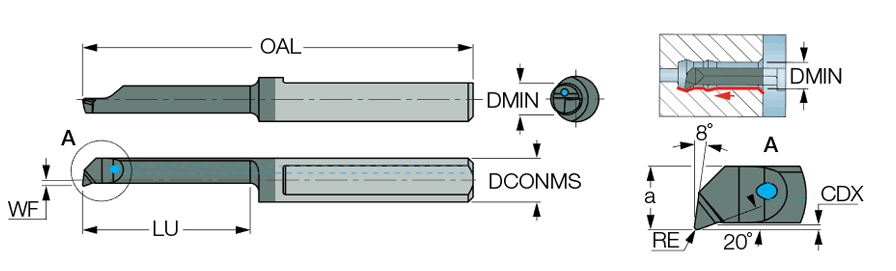

| Connection Diameter Machine Side (DCONMS) | 0.278″ | Functional Width (WF) | 0.11″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Usable Length (LU) | 0.748″ |
| Minimum Bore Diameter (DMIN) | 0.268″ | Overhang Minimum (OHN) | 0.123″ |
| Functional Length (LF) | 1.614″ | Body Material | Carbide |
| Reduced Body Diameter Length (LDRED) | 0.748″ | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Style | Corner Radius |
| Coating | TiAlN | Length Group | Regular |
| Grade | IC902 | Series/List # | 601 |
| Application | | Int. Axial Turning | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Front End Width (a) | 0.248″ | Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0.006″ | Single / Double End | Single End |
| Cutting Depth Maximum (CDX) | 0.024″ |
Product Features
| Family Description | Inserts with inner coolant channel, for internal turning and chamfering of hard steel - Up to 65 HRC. | Country of Origin | Germany |
| Remarks | Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only |
Shipping Info
Package Weight
0.046
