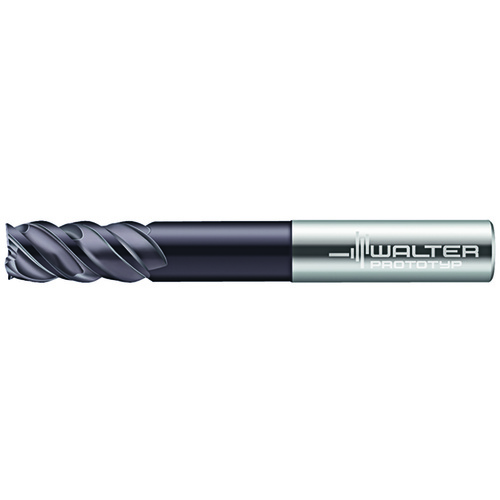

MC326-12.0W4BC-WK40TF 4FL SC EM
SQ End Mill; 12 mm Dia. × 26 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 0.1 mm RE ; 4 FL ; 36 mm LBS ; Carbide ; TiAlN ; Series MC326
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12 mm | Usable Length (LU) | 36 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 26 mm | Grade | WK40TF |
| Overall Length (OAL) | 83 mm | Tool Type | Square Endmill |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiAlN | Shank Standard | DIN 6535 HB |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 50 Degrees | Measurement Type | Metric |
| Shank Type | Weldon | Series/List # | MC326 |
| End Shape | Square | Corner Radius (RE) / Chamfer Width (CHW) | 0.1 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
