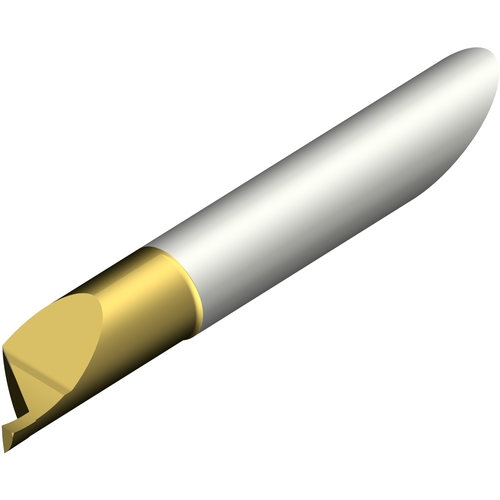

CXS-06F100-6215AR 1025 COROTURN XS INSERT
Boring Bar; 6 mm Shank Dia. × 0.244″ Min Bore Dia. × 0.1161″ Max Bore Depth × 42.5 mm LF ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | 1025 |
| Minimum Bore Diameter (DMIN) | 0.244″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Functional Length (LF) | 42.5 mm | Front End Width (a) | 1 mm |
| Head Length (LH) | 2 mm | Cutting Depth Maximum (CDX) | 0.1161″ |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | Face Groove |
Product Features
| Country of Origin | United Kingdom |
Shipping Info
Package Length
3.50000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.04
