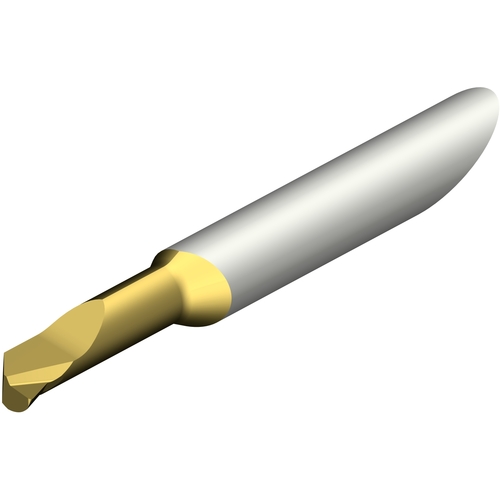

CXS-04T098-15-3210R H10F COROTURN XS INSERT
Boring Bar; 4 mm Shank Dia. × 3.2 mm Min Bore Dia. × 30.71 mm LF ; 0.15 mm Corner Radius ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Connection Diameter Machine Side (DCONMS) | 4 mm | Grade | H10F |
| Minimum Bore Diameter (DMIN) | 3.2 mm | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Functional Length (LF) | 30.71 mm | Front End Width (a) | 1.4 mm |
| Head Length (LH) | 0.2 mm | Corner Radius (RE) | 0.15 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | Uncoated |
Product Features
| Country of Origin | United Kingdom |
Shipping Info
Package Weight
.026
