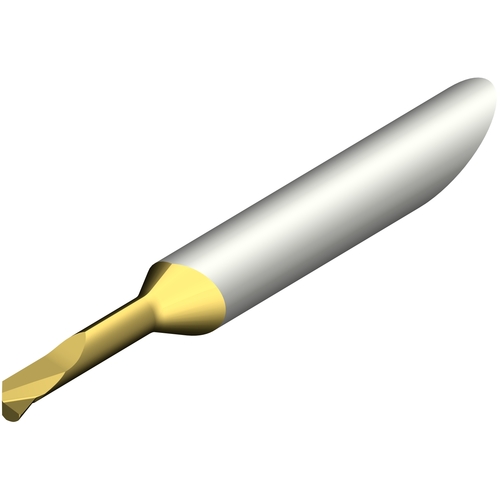

CXS-04T098-10-2209R 1025 COROTURN XS INSERT
Boring Bar; 4 mm Shank Dia. × 2.2 mm Min Bore Dia. × 30.71 mm LF ; 0.1 mm Corner Radius ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Connection Diameter Machine Side (DCONMS) | 4 mm | Grade | 1025 |
| Minimum Bore Diameter (DMIN) | 2.2 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Functional Length (LF) | 30.71 mm | Front End Width (a) | 1 mm |
| Head Length (LH) | 0.2 mm | Corner Radius (RE) | 0.1 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN |
Product Features
| Country of Origin | United Kingdom |
Shipping Info
Package Weight
0.031
