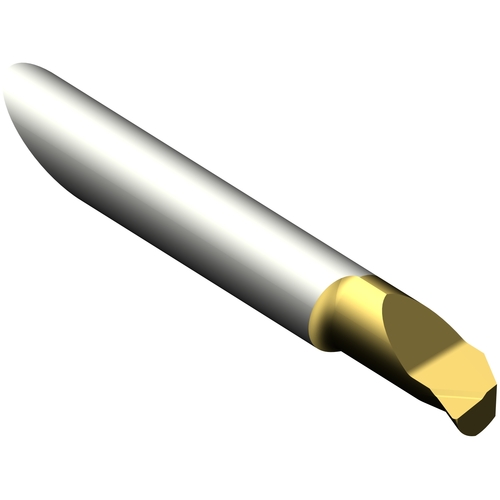

CXS-05T098-20-5210L 1025 COROTURN XS INSERT
Boring Bar; 5 mm Shank Dia. × 5.2 mm Min Bore Dia. × 36.58 mm LF ; 0.2 mm Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Connection Diameter Machine Side (DCONMS) | 5 mm | Grade | 1025 |
| Minimum Bore Diameter (DMIN) | 5.2 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Functional Length (LF) | 36.58 mm | Front End Width (a) | 2.4 mm |
| Head Length (LH) | 0.5 mm | Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Left Hand | Cutting Edge Material | Carbide |
Product Features
| Country of Origin | United Kingdom |
Shipping Info
Package Weight
0.04
