CXS04T098051004R 1025

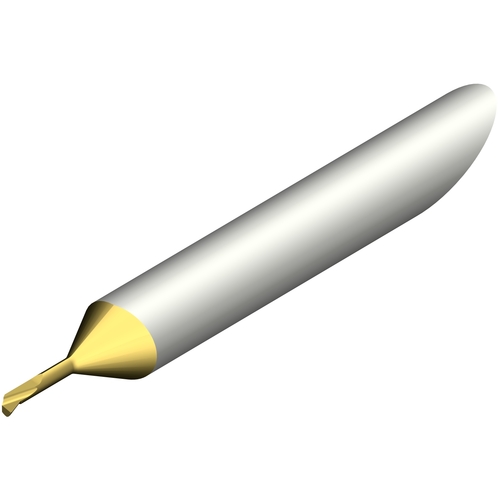

Boring Bar; 4 mm Shank Dia. × 1 mm Min Bore Dia. × 29.71 mm LF ; 0.05 mm Corner Radius ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Connection Diameter Machine Side (DCONMS) | 4 mm | Grade | 1025 |
| Minimum Bore Diameter (DMIN) | 1 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Functional Length (LF) | 29.71 mm | Front End Width (a) | 0.4 mm |
| Head Length (LH) | 0.1 mm | Corner Radius (RE) | 0.05 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN |
Product Features
| Country of Origin | United Kingdom |
Shipping Info
Package Weight
0.026
