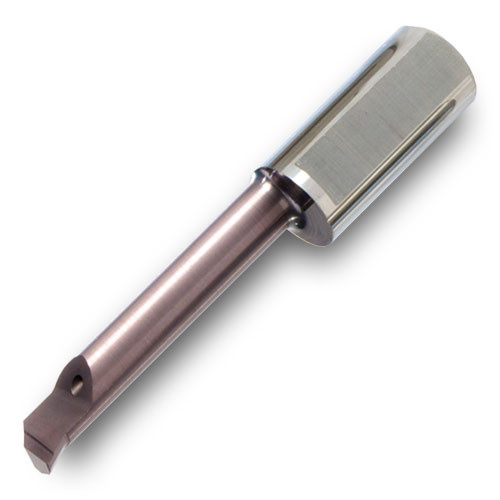

MINTL07-140015D060 TT9030
Boring Bar; 0.276″ Shank Dia. × 0.236″ Min Bore Dia. × 0.02″ Max Bore Depth × 1.181″ OAL ; 0.006″ Corner Radius ; Carbide ; TiAlN

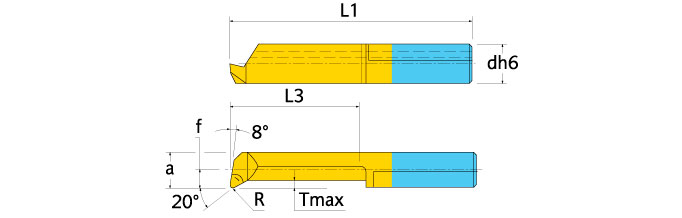

| Connection Diameter Machine Side (DCONMS) | 0.276″ | Functional Width (WF) | 0.091″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Overhang Minimum (OHN) | 0.55″ |
| Minimum Bore Diameter (DMIN) | 0.236″ | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | 0.551″ | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Left Hand | Style | Corner Radius |
| Coating | TiAlN | Length Group | Regular |
| Grade | TT9030 | Series/List # | 601 |
| Front End Width (a) | 0.209″ | Measurement Type | Inch |
| Corner Radius (RE) | 0.006″ | Overall Length (OAL) | 1.181″ |
| Cutting Depth Maximum (CDX) | 0.02″ | Single / Double End | Single End |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.029
