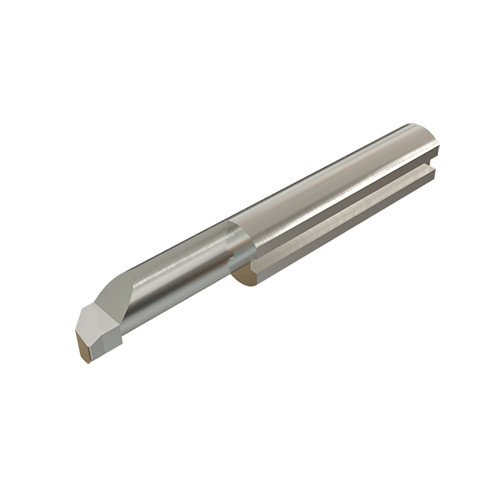

PICCO R 050.3-10B IB55
Boring Bar; 0.157″ Shank Dia. × 0.11″ Min Bore Dia. × 0.008″ Max Bore Depth × 0.3937″ LU × 1.004″ LF × 4″ OAL ; 0.004″ Corner Radius ; PCBN ; Uncoated

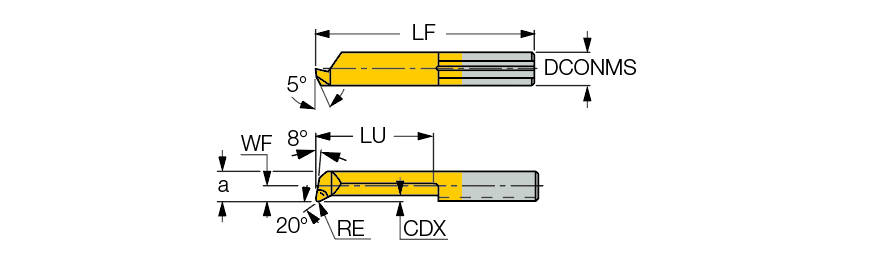

| Connection Diameter Machine Side (DCONMS) | 0.157″ | Functional Width (WF) | 0.024″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Usable Length (LU) | 0.3937″ |
| Minimum Bore Diameter (DMIN) | 0.11″ | Overhang Minimum (OHN) | 0.123″ |
| Functional Length (LF) | 1.004″ | Body Material | Carbide |
| Reduced Body Diameter Length (LDRED) | 0.394″ | Cutting Edge Material | PCBN |
| Cutting Direction (HAND) | Right Hand | Style | Corner Radius |
| Coating | Uncoated | Length Group | Regular |
| Grade | IB55 | Series/List # | 601 |
| Application | | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Cast Iron | Hard Materials | | Measurement Type | Inch |
| Front End Width (a) | 0.102″ | Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0.004″ | Single / Double End | Single End |
| Cutting Depth Maximum (CDX) | 0.008″ |
Product Features
| Family Description | PICCOCUT CBN tipped inserts for internal turning profiling and chamfering hard steel. | Country of Origin | Germany |
| Remarks | It is not recommended to use coolant when machining with CBN tipped tools Available on request only |
Shipping Info
Package Weight
0.013
