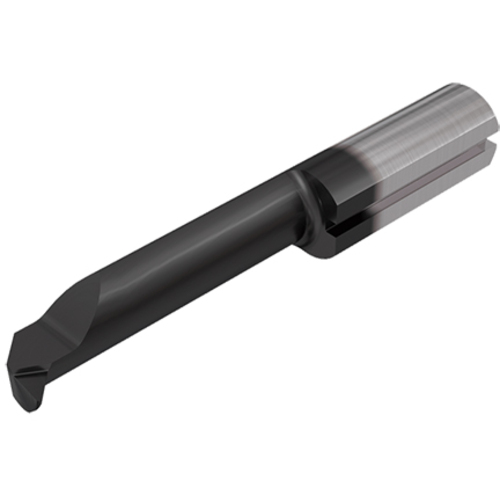

PICCO R 047.4-20 IC908
Boring Bar; 0.157″ Shank Dia. × 0.157″ Min Bore Dia. × 0.012″ Max Bore Depth × 0.7874″ LU × 1.339″ LF × 4″ OAL ; 0.0059″ Corner Radius ; Carbide ; TiAlN

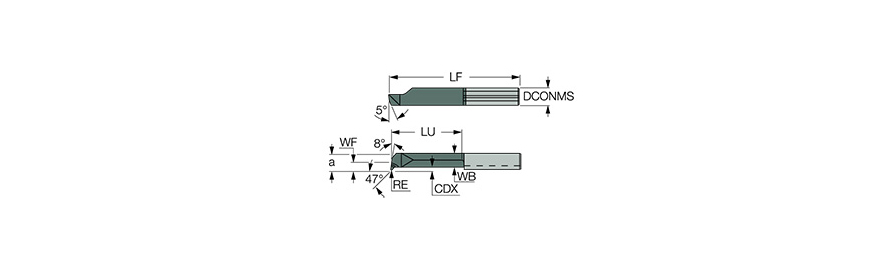

| Connection Diameter Machine Side (DCONMS) | 0.157″ | Functional Width (WF) | 0.059″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Usable Length (LU) | 0.7874″ |
| Minimum Bore Diameter (DMIN) | 0.157″ | Overhang Minimum (OHN) | 0.123″ |
| Functional Length (LF) | 1.339″ | Body Material | Carbide |
| Reduced Body Diameter Length (LDRED) | 0.787″ | Cutting Edge Material | Carbide |
| Coating | TiAlN | Style | Corner Radius |
| Grade | IC908 | Length Group | Regular |
| Application | | Int. Boring and Profiling | | Series/List # | 601 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Solid Carbide Turn Tool |
| Front End Width (a) | 0.138″ | Measurement Type | Inch |
| Corner Radius (RE) | 0.0059″ | Overall Length (OAL) | 4″ |
| Cutting Depth Maximum (CDX) | 0.012″ | Single / Double End | Single End |
Product Features
| Family Description | PICCOCUT inserts for internal deep profiling. | Country of Origin | Israel |
| Remarks | Left hand inserts on request. |
Shipping Info
Package Weight
0.018
