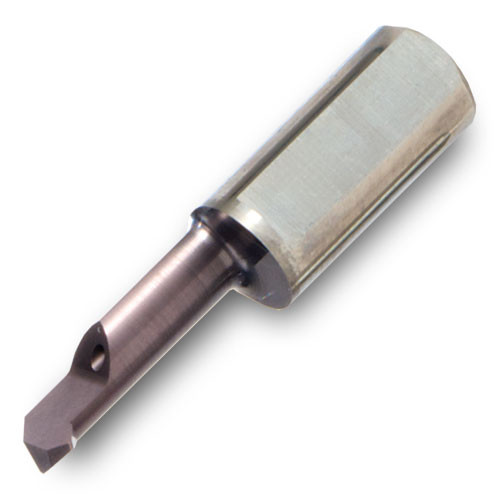

MINCR07-140020D050 TT9030
Boring Bar; 0.276″ Shank Dia. × 0.197″ Min Bore Dia. × 0.028″ Max Bore Depth × 1.181″ OAL ; 0.008″ Corner Radius ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Functional Width (WF) | 0.035″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Overhang Minimum (OHN) | 0.123″ |
| Minimum Bore Diameter (DMIN) | 0.197″ | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | 0.551″ | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Style | Corner Radius |
| Coating | TiAlN | Length Group | Regular |
| Grade | TT9030 | Series/List # | 601 |
| Front End Width (a) | 0.173″ | Measurement Type | Inch |
| Corner Radius (RE) | 0.008″ | Overall Length (OAL) | 1.181″ |
| Cutting Depth Maximum (CDX) | 0.028″ | Single / Double End | Single End |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.026
