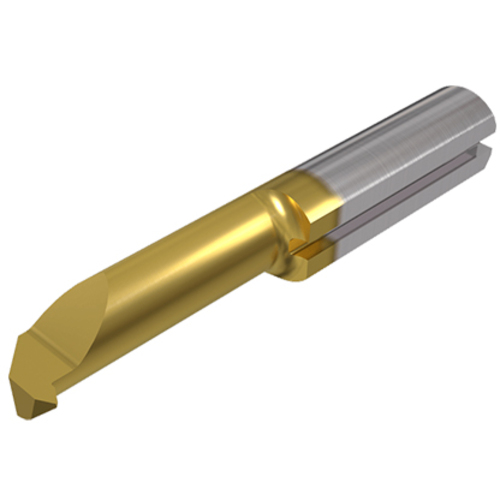

PICCO L 005.0205-15 IC228
Boring Bar; 0.197″ Shank Dia. × 0.197″ Min Bore Dia. × 1.181″ LF × 4″ OAL ; Carbide ; TiCN+TiN

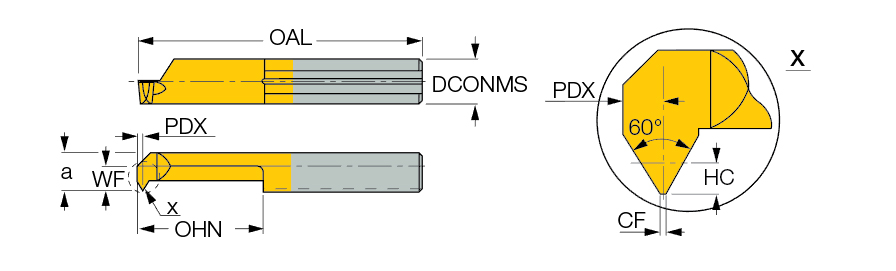

| Connection Diameter Machine Side (DCONMS) | 0.197″ | Central Flat (CF) | 0.002″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.197″ | Cutting Edge Material | Carbide |
| Functional Length (LF) | 1.181″ | Style | Corner Radius |
| Reduced Body Diameter Length (LDRED) | 0.591″ | Length Group | Regular |
| Cutting Direction (HAND) | Left Hand | Series/List # | 601 |
| Coating | TiCN+TiN | Tool Type | Solid Threading Tools |

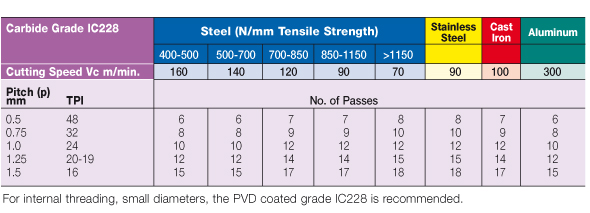

| Grade | IC228 | Measurement Type | Inch |
| Application | | Threading (Int.) | | Thread Standard | THFT | |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Overall Length (OAL) | 4″ |
| Front End Width (a) | 0.173″ | Single / Double End | Single End |
| Functional Width (WF) | 0.075″ | Thread Form Type (THFT) | VP60 |
| Overhang Minimum (OHN) | 0.123″ |
Product Features
| Family Description | Inserts with a 60° internal thread profile for .094″ min. bore diameter. | Country of Origin | Israel |
| Remarks | DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H ANSI/ASME B1.1 - Internal tolerance: 2B |
Shipping Info
Package Weight
0.020
