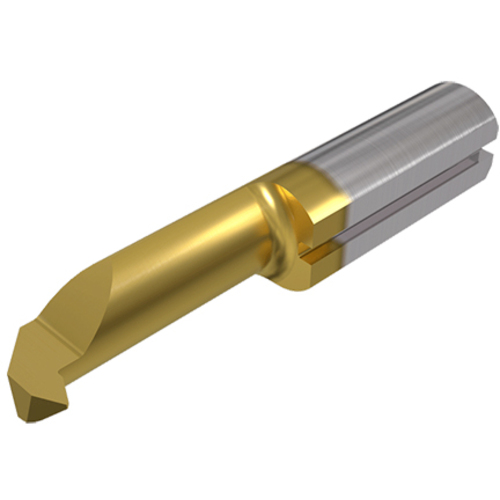

PICCO R 005.5548-15 IC228
Boring Bar; 0.197″ Shank Dia. × 0.189″ Min Bore Dia. × 1.181″ LF × 4″ OAL ; Carbide ; TiCN+TiN

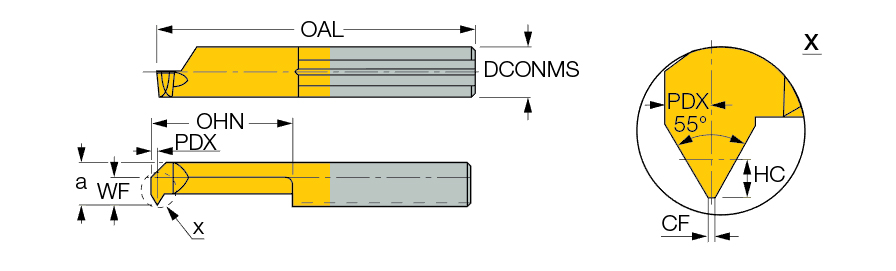

| Connection Diameter Machine Side (DCONMS) | 0.197″ | Body Material | Carbide |
| Maximum Bore Diameter (DMAX) | 0.49″ | Cutting Edge Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.189″ | Style | Corner Radius |
| Functional Length (LF) | 1.181″ | Length Group | Regular |
| Reduced Body Diameter Length (LDRED) | 0.591″ | Series/List # | 601 |
| Cutting Direction (HAND) | Right Hand | Tool Type | Solid Threading Tools |
| Coating | TiCN+TiN | Measurement Type | Inch |
| Grade | IC228 | Threads per Inch Maximum (TPIX) | 48 |
| Application | | Threading (Int.) | | Threads per Inch Minimum (TPIN) | 24 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Standard | THFT | |
| Front End Width (a) | 0.173″ | Overall Length (OAL) | 4″ |
| Functional Width (WF) | 0.075″ | Single / Double End | Single End |
| Overhang Minimum (OHN) | 0.123″ | Thread Form Type (THFT) | VP55 |
| Central Flat (CF) | 0.002″ |
Product Features
| Family Description | Inserts for 55° internal thread profile. | Country of Origin | Israel |
| Remarks | All mini-bars have sharp corners |
Shipping Info
Package Weight
0.020
