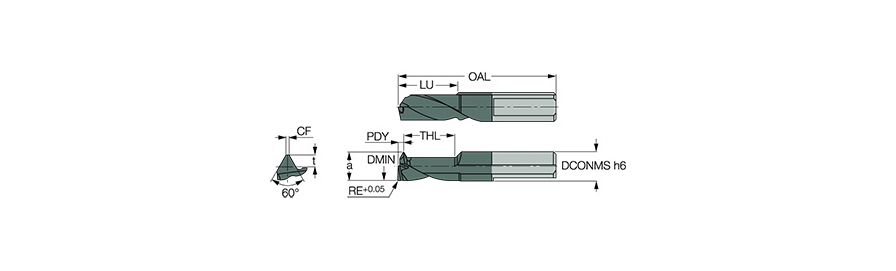

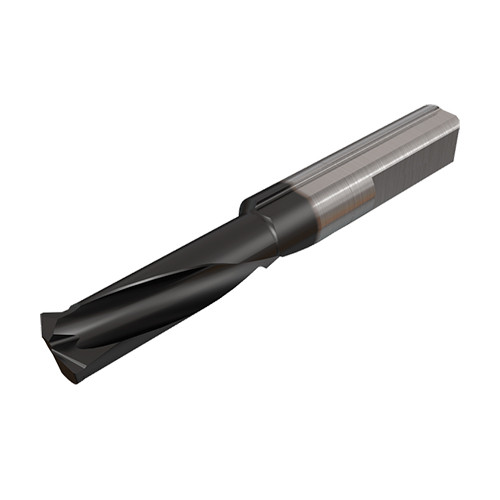

PICCO R-MFT60 6-6 L12 IC908
Boring Bar; 0.236″ Shank Dia. × 0.236″ Min Bore Dia. × 0.4724″ LU × 1.339″ LF × 4″ OAL ; 0.0039″ Corner Radius ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Central Flat (CF) | 0.002″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.236″ | Cutting Edge Material | Carbide |
| Functional Length (LF) | 1.339″ | Style | Corner Radius |
| Cutting Direction (HAND) | Right Hand | Length Group | Regular |
| Coating | TiAlN | Series/List # | 601 |
| Grade | IC908 | Tool Type | Solid Carbide Turn Tool |
| Application | | Drill Face Ext Int Turn Thread | | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Standard | THFT | |
| Front End Width (a) | 0.232″ | Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0.0039″ | Single / Double End | Single End |
| Usable Length (LU) | 0.4724″ | Thread Form Type (THFT) | VP60 |
| Overhang Minimum (OHN) | 0.123″ |
Product Features
| Family Description | Solid Carbide Tools for Drilling, Facing, Internal / External Turning and Threading on Swiss and Small CNC Machines. Part of the PASSPORT system | Country of Origin | Israel |
| Remarks | Applications: Drilling; face turning; internal chamfering; internal turning/boring; internal profiling; external chamfering; external turning; internal and external 60° threading (right- and left-hand) DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A |
Shipping Info
Package Weight
0.031
