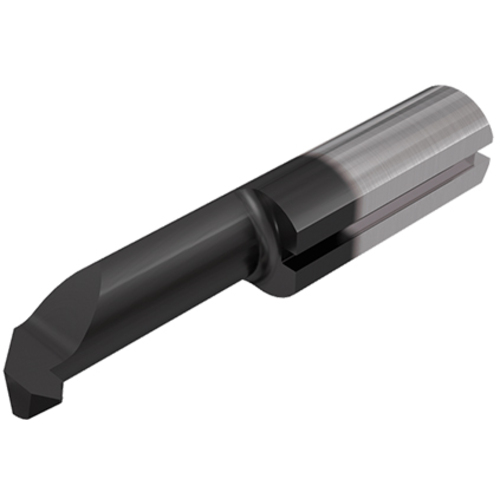

PICCO L 106.0815-15 IC908
Boring Bar; 0.236″ Shank Dia. × 0.236″ Min Bore Dia. × 1.181″ LF × 4″ OAL ; Carbide ; TiAlN

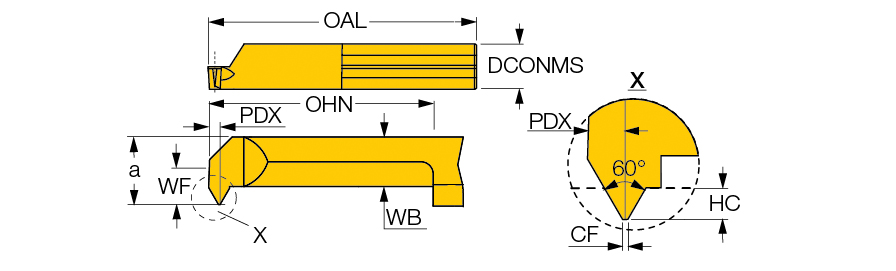

| Connection Diameter Machine Side (DCONMS) | 0.236″ | Central Flat (CF) | 0.007″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.236″ | Cutting Edge Material | Carbide |
| Functional Length (LF) | 1.181″ | Style | Corner Radius |
| Head Length (LH) | 0.591″ | Length Group | Regular |
| Cutting Direction (HAND) | Left Hand | Series/List # | 601 |
| Coating | TiAlN | Tool Type | Solid Threading Tools |
| Grade | IC908 | Measurement Type | Inch |
| Application | | Threading (Int.) | | Thread Standard | THFT | |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Overall Length (OAL) | 4″ |
| Front End Width (a) | 0.209″ | Single / Double End | Single End |
| Functional Width (WF) | 0.091″ | Thread Form Type (THFT) | M60 |
| Overhang Minimum (OHN) | 0.123″ |
Product Features
| Family Description | PICCOCUT inserts for ISO, standard full profile thread. | Country of Origin | Germany |
Shipping Info
Package Weight
0.033
