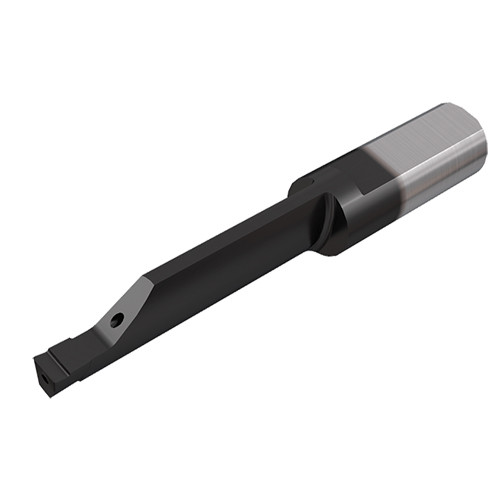

PICCO R020.0300-25N IC908
Boring Bar; 0.315″ Shank Dia. × 0.945″ Max Bore Depth × 1.811″ LF × 4″ OAL ; Carbide ; TiAlN

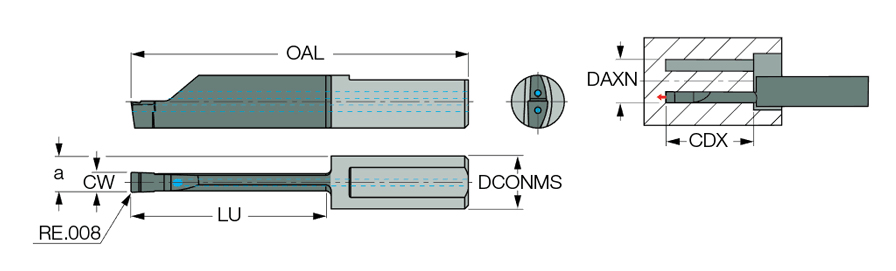

| Connection Diameter Machine Side (DCONMS) | 0.315″ | Overhang Minimum (OHN) | 0.123″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Body Material | Carbide |
| Functional Length (LF) | 1.811″ | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Style | Corner Radius |
| Coating | TiAlN | Length Group | Regular |
| Grade | IC908 | Series/List # | 601 |
| Application | | Face Grooving | Int. Face Grooving | | Tool Type | Face Solid, Grooving &Turning grooving |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Front End Width (a) | 0.217″ | Overall Length (OAL) | 4″ |
| Cutting Depth Maximum (CDX) | 0.945″ | Single / Double End | Single End |
Product Features
| Family Description | PICCO-JETCUT mini inserts with Coolant Holes, for deep face grooving at Dmin .63/.79″. | Country of Origin | Germany |
| Remarks | All inserts have two coolant holes which may be used with coolant pressure up to 1450 PSI Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only |
Shipping Info
Package Weight
0.048
