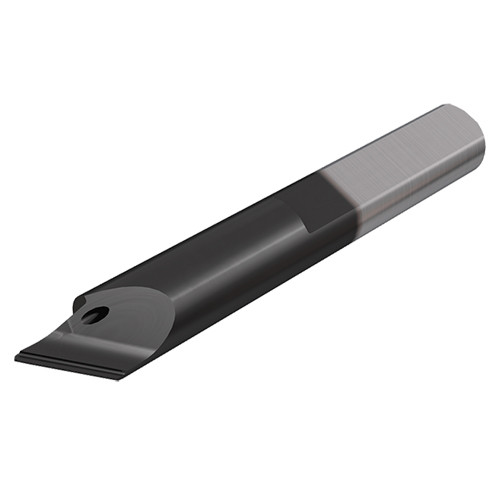

PICCO R 520.0045-15N IC908
Boring Bar; 0.199″ Shank Dia. × 0.039″ Min Bore Dia. × 1.417″ LF × 4″ OAL ; 0.008″ Corner Radius ; Carbide ; TiAlN

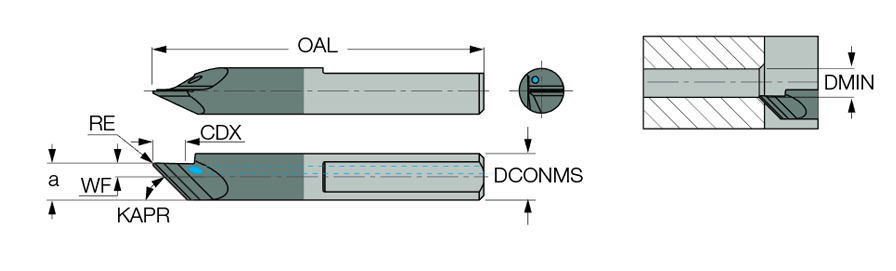

| Connection Diameter Machine Side (DCONMS) | 0.199″ | Overhang Minimum (OHN) | 0.123″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.039″ | Cutting Edge Material | Carbide |
| Functional Length (LF) | 1.417″ | Style | Corner Radius |
| Cutting Direction (HAND) | Right Hand | Length Group | Regular |
| Coating | TiAlN | Series/List # | 601 |
| Grade | IC908 | Tool Type | Solid, Turning & Grooving |
| Application | | Int. Chamfering | | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0.008″ | Single / Double End | Single End |
| Functional Width (WF) | 0.059″ |
Product Features
| Family Description | PICCO-JETCUT inserts with inner coolant channel, for internal chamfering. | Country of Origin | Germany |
| Remarks | Left hand inserts on request. Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only |
Shipping Info
Package Weight
0.027
