PICCO R 050.7-20NB IB55

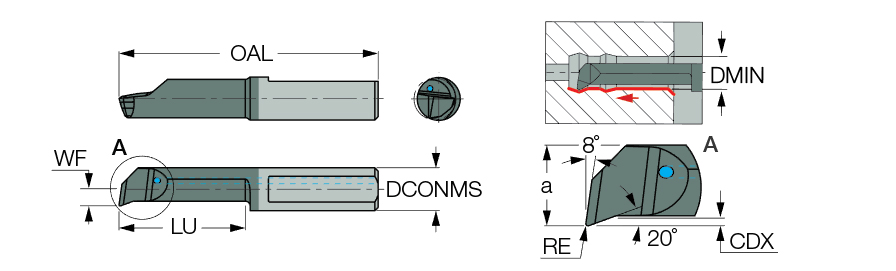

Boring Bar; 0.278″ Shank Dia. × 0.268″ Min Bore Dia. × 0.024″ Max Bore Depth × 0.807″ LU × 1.673″ LF × 4″ OAL ; 0.006″ Corner Radius ; PCBN ; Uncoated
| Connection Diameter Machine Side (DCONMS) | 0.278″ | Functional Width (WF) | 0.11″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Usable Length (LU) | 0.807″ |
| Minimum Bore Diameter (DMIN) | 0.268″ | Overhang Minimum (OHN) | 0.123″ |
| Functional Length (LF) | 1.673″ | Body Material | Carbide |
| Reduced Body Diameter Length (LDRED) | 0.807″ | Cutting Edge Material | PCBN |
| Cutting Direction (HAND) | Right Hand | Style | Corner Radius |
| Coating | Uncoated | Length Group | Regular |
| Grade | IB55 | Series/List # | 601 |
| Application | | Int. Axial Turning | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Cast Iron | Hard Materials | | Measurement Type | Inch |
| Front End Width (a) | 0.248″ | Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0.006″ | Single / Double End | Single End |
| Cutting Depth Maximum (CDX) | 0.024″ |
Product Features
| Family Description | PICCO-JETCUT CBN tipped inserts with inner coolant channel, for internal turning profiling and chamfering of hard steel. | Country of Origin | Italy |
| Remarks | It is not recommended to use coolant when machining with CBN tipped tools Available on request only Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only |
Shipping Info
Package Weight
0.047
