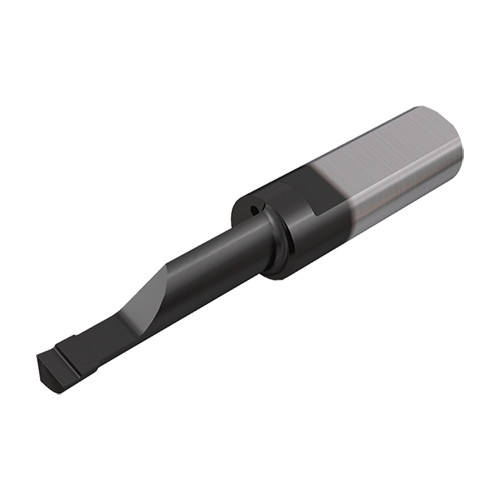

PICCO R 015.3015-20N IC908
Boring Bar; 0.278″ Shank Dia. × 0.787″ LU × 1.614″ LF × 4″ OAL ; Carbide ; TiAlN

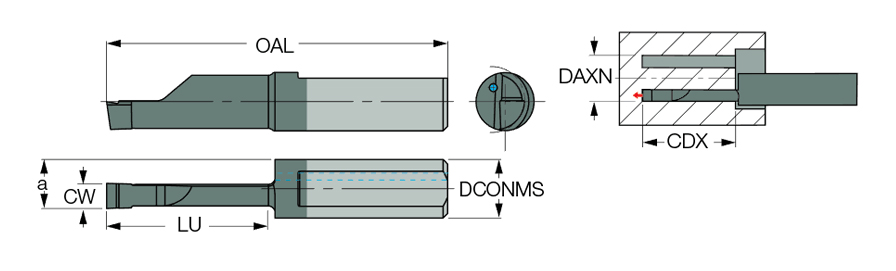

| Connection Diameter Machine Side (DCONMS) | 0.278″ | Overhang Minimum (OHN) | 0.123″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Body Material | Carbide |
| Functional Length (LF) | 1.614″ | Cutting Edge Material | Carbide |
| Reduced Body Diameter Length (LDRED) | 0.787″ | Style | Corner Radius |
| Cutting Direction (HAND) | Right Hand | Length Group | Regular |
| Coating | TiAlN | Series/List # | 601 |
| Grade | IC908 | Tool Type | Solid, Turning & Grooving |
| Application | | Face Grooving | Int. Face Grooving | | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Overall Length (OAL) | 4″ |
| Front End Width (a) | 0.232″ | Single / Double End | Single End |
| Usable Length (LU) | 0.787″ |
Product Features
| Family Description | PICCO-JETCUT mini inserts with internal coolant channel, for deep face grooving at Dmin .591″. | Country of Origin | Germany |
| Remarks | Only right-hand inserts are available as standard, left-hand inserts on request All inserts are with sharp corners Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only |
Shipping Info
Package Weight
0.038
