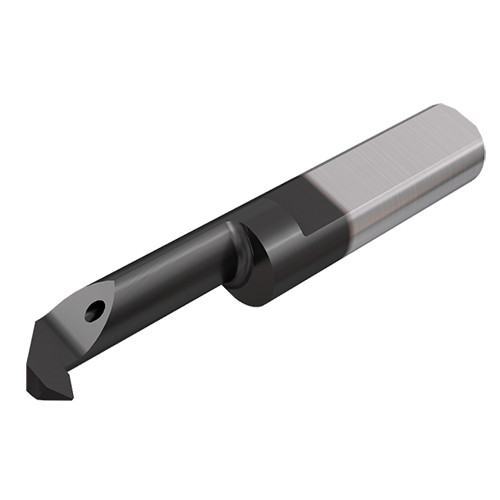

PICCO R 007.5524-15NIC908 IC908
Boring Bar; 0.278″ Shank Dia. × 0.276″ Min Bore Dia. × 0.551″ LU × 1.417″ LF × 4″ OAL ; Carbide ; TiAlN

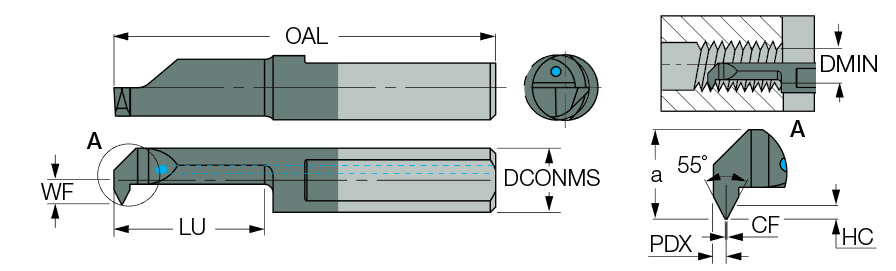

| Connection Diameter Machine Side (DCONMS) | 0.278″ | Central Flat (CF) | 0.005″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.276″ | Cutting Edge Material | Carbide |
| Functional Length (LF) | 1.417″ | Style | Corner Radius |
| Reduced Body Diameter Length (LDRED) | 0.551″ | Length Group | Regular |
| Cutting Direction (HAND) | Right Hand | Series/List # | 601 |
| Coating | TiAlN | Tool Type | Solid Threading Tools |
| Grade | IC908 | Measurement Type | Inch |
| Application | | Threading (Int.) | | Threads per Inch Maximum (TPIX) | 24 Threads/" |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Threads per Inch Minimum (TPIN) | 16 Threads/" |
| Front End Width (a) | 0.248″ | Thread Standard | THFT | |
| Functional Width (WF) | 0.11″ | Overall Length (OAL) | 4″ |
| Usable Length (LU) | 0.551″ | Single / Double End | Single End |
| Overhang Minimum (OHN) | 0.123″ | Thread Form Type (THFT) | VP55 |
Product Features
| Family Description | Inserts with inner coolant channel, for 55° internal threading profile. | Country of Origin | Germany |
| Remarks | All mini-bars have sharp corners Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only |
Shipping Info
Package Weight
0.039
