PICCO R 007.0150-15N IC908

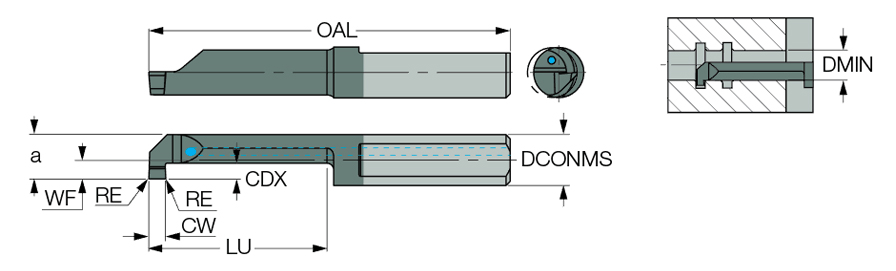

Boring Bar; 0.278″ Shank Dia. × 0.268″ Min Bore Dia. × 0.098″ Max Bore Depth × 0.551″ LU × 1.417″ LF × 4″ OAL ; 0″ Corner Radius ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.278″ | Functional Width (WF) | 0.11″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Usable Length (LU) | 0.551″ |
| Minimum Bore Diameter (DMIN) | 0.268″ | Overhang Minimum (OHN) | 0.123″ |
| Functional Length (LF) | 1.417″ | Body Material | Carbide |
| Reduced Body Diameter Length (LDRED) | 0.551″ | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Style | Corner Radius |
| Coating | TiAlN | Length Group | Regular |
| Grade | IC908 | Series/List # | 601 |
| Application | | Int. Groove & Turn | Int. Grooving | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Front End Width (a) | 0.248″ | Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0″ | Single / Double End | Single End |
| Cutting Depth Maximum (CDX) | 0.098″ | Cutting Width (CW) | 0.059″ |
Product Features
| Family Description | Inserts with inner coolant channel for grooving and turning, Dmin .157″. | Country of Origin | Germany |
| Remarks | All carbide bars with sharp corners Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only |
Shipping Info
Package Weight
0.038
