601-180500 1/4X2-1/2

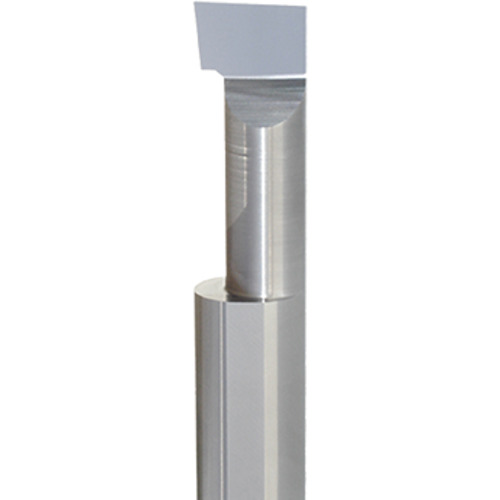

Boring Bar; 1/4″ Shank Dia. × 1/2″ Min Bore Dia. × 2-1/2″ OAL ; 0.006″ Corner Radius ; Carbide ; Uncoated
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Overhang Minimum (OHN) | 0.045″ |
| Maximum Bore Diameter (DMAX) | 0.18″ | Cutting Edge Material | Carbide |
| Minimum Bore Diameter (DMIN) | 1/2″ | Style | Corner Radius |
| Cutting Direction (HAND) | Right Hand | Length Group | Regular |
| Coating | Uncoated | Series/List # | 601 |
| Grade | C-2 Sub-Micron | Overall Length (OAL) | 2-1/2″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Single / Double End | Single End |
| Corner Radius (RE) | 0.006″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
