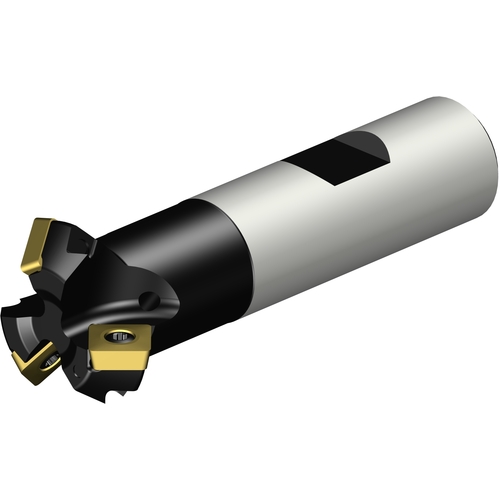

A495-020M19-4509M COROMILL 495
Indexable End Mill; 0.77″ Dia. × 0.22″ LOC × 3/4″ Shank Dia. × 3.35″ OAL ; Weldon Shank
| Cutting Diameter (DC/DCX) | 0.77″ | Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Cutting Diameter (DC) | 0.77″ | Head Length (LH) | 1.305″ |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.22″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3.35″ | Model Number | A495-020M19-4509M |
| Shank Type | Weldon |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.505
