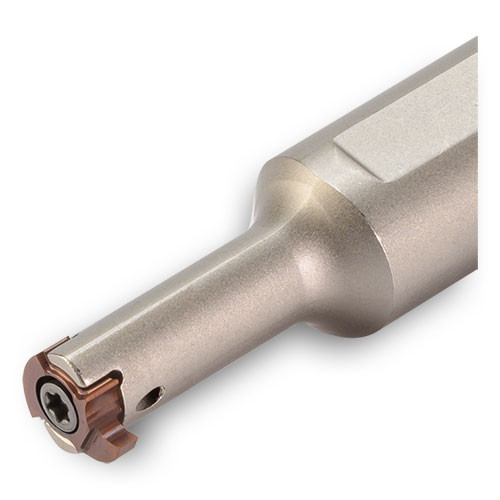

TMIHN12.7-16-8
Boring Bar; 1/2″ Shank Dia. × 0.394″ Min Bore Dia. × 3″ OAL
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Body Material | Steel |
| Maximum Bore Diameter (DMAX) | 0.49″ | Style | Corner Radius |
| Minimum Bore Diameter (DMIN) | 0.394″ | Length Group | Regular |
| Reduced Body Diameter Length (LDRED) | 0.63″ | Series/List # | 601 |
| Application | | Int. Groove & Turn | Int. Grooving | | Measurement Type | Inch |
| Functional Width (WF) | 0.185″ | Overall Length (OAL) | 3″ |
| Overhang Minimum (OHN) | 0.123″ | Single / Double End | Single End |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.220
