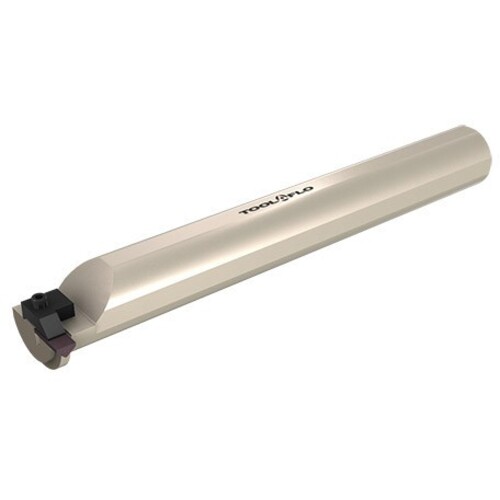

SI-CDHOR-50MM
| Cutting Width Minimum (CWN) | 0.118″ | Connection Diameter Machine Side (DCONMS) | 50 mm |
| Cutting Width Maximum (CWX) | 0.126″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 7.9 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 1.26″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 76.2 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 39.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 400 mm |
Product Features
| Country of Origin | USA |
