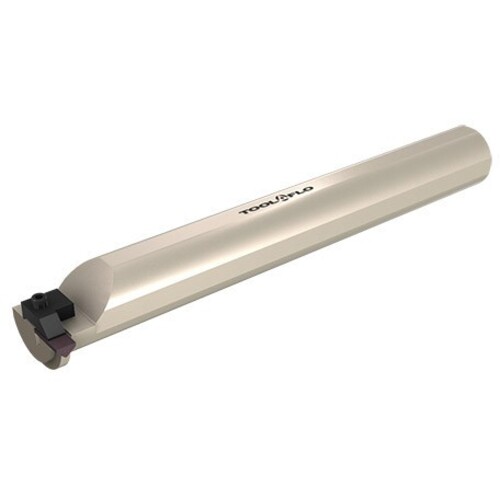

SI-CDHOR-50M9
Grooving Toolholder ; 400 mm OAL ; 1.26″ Shank Height ; 50 mm Shank Dia. ; 0.118″ CW Min. ; 0.126″ CW Max. ; 9.2 mm Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.118″ | Connection Diameter Machine Side (DCONMS) | 50 mm |
| Cutting Width Maximum (CWX) | 0.126″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 9.2 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 1.26″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 63.5 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 38.8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 400 mm | Insert Style | V96 | V98 |
Product Features
| Country of Origin | USA |
