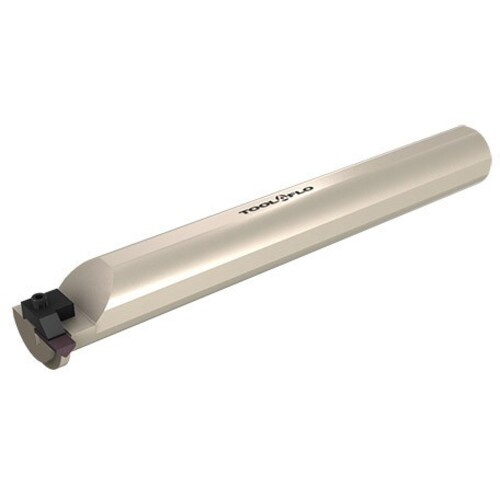

SI-CDHOR-32M8
Grooving Toolholder ; 300 mm OAL ; 1.26″ Shank Height ; 32 mm Shank Dia. ; 0.118″ CW Min. ; 0.126″ CW Max. ; 6.4 mm Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.118″ | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Width Maximum (CWX) | 0.126″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 6.4 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 1.26″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 38.1 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 18.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 300 mm | Insert Style | V84 | V85 |
Product Features
| Country of Origin | USA |
