MS-CLHOL-6845

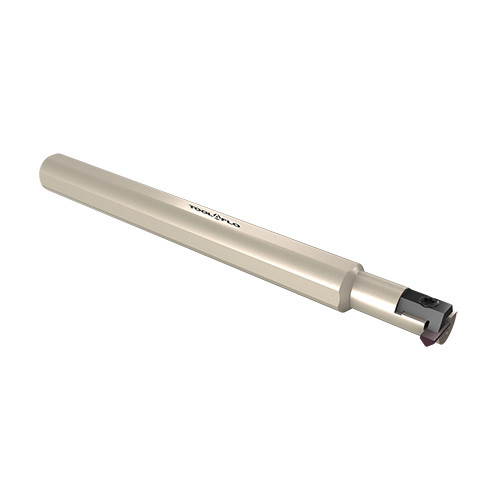

Grooving Toolholder; 3/4″ Shank Dia. × 0.15″ Max Depth × 8″ OAL
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Depth Maximum (CDX) | 0.15″ |
| Overall Length (OAL) | 8″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.7″ | Measurement Type | Inch |
| Application | | Int Threading Vee Bottom | | Functional Width (WF) | 0.4″ |
| Cutting Direction (HAND) | Left Hand | Reduced Body Diameter Length (LDRED) | 1-1/4″ |
| Head Length (LH) | 1-1/4″ |
Product Features
| Family Description | Internal Left Hand Threading Bars for MLPE Style FloVee Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.000
