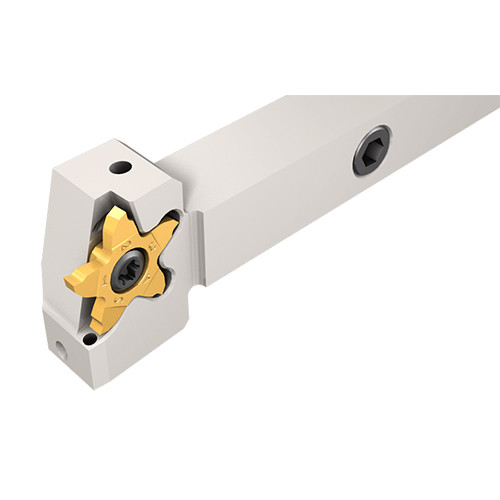

PCHLS 12.7-17-JHP
Grooving Toolholder ; 3.94″ OAL ; 1/2″ Shank Height ; 1/2″ Shank Width ; 0.01″ CW Min. ; 1/8″ CW Max. ; 0.157″ Max Depth ; Steel

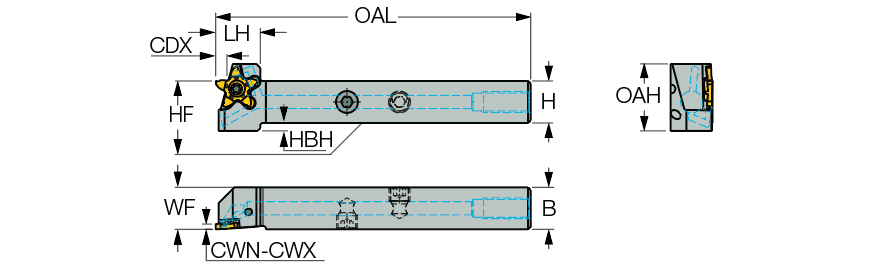

| Cutting Width Minimum (CWN) | 0.01″ | Overall Length (OAL) | 3.94″ |
| Cutting Width Maximum (CWX) | 1/8″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.157″ | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Parting | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 1/2″ | Body Material | Steel |
| Shank Width (B) | 1/2″ | Measurement Type | Inch |
| Functional Width (WF) | 1/2″ | Head Bottom Offset Height (HBH) | 0.21″ |
| Head Length (LH) | 0.67″ |
Product Features
| Family Description | Tools Carrying Inserts with 5 Cutting Edges for Shallow Profiling Next to High Shoulders | Country of Origin | Israel |
Shipping Info
Package Weight
0.351
