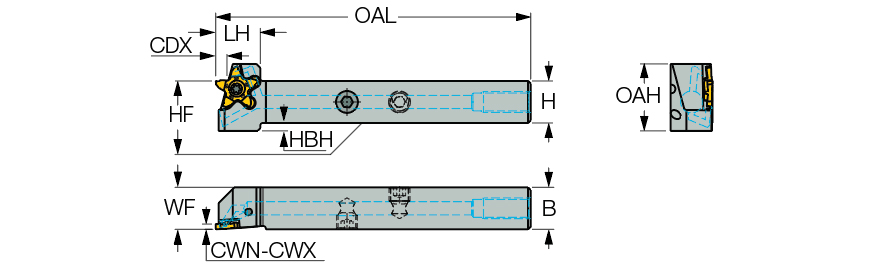

PCHLS 10-17-JHP
| Cutting Width Minimum (CWN) | 0.25 mm | Overall Length (OAL) | 100 mm |
| Cutting Width Maximum (CWX) | 3.18 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 4 mm | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Parting | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 10 mm | Body Material | Steel |
| Shank Width (B) | 10 mm | Measurement Type | Metric |
| Functional Width (WF) | 10 mm | Head Bottom Offset Height (HBH) | 8 mm |
| Head Length (LH) | 17 mm |
Product Features
| Family Description | Tools Carrying Inserts with 5 Cutting Edges for Shallow Profiling Next to High Shoulders | Country of Origin | Israel |
Shipping Info
Package Weight
0.280
