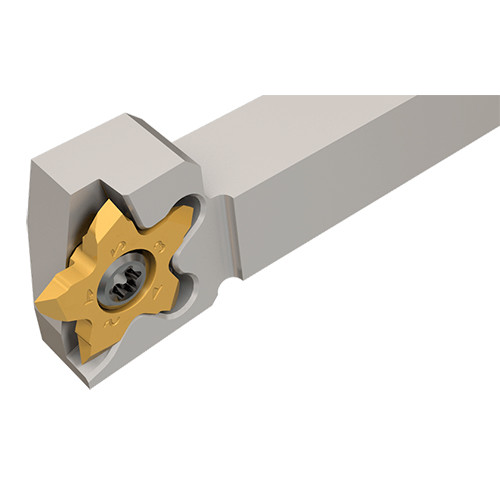

PCHLS 25.4-17
Grooving Toolholder ; 4.724″ OAL ; 1″ Shank Height ; 1″ Shank Width ; 0.01″ CW Min. ; 1/8″ CW Max. ; 0.157″ Max Depth ; Steel

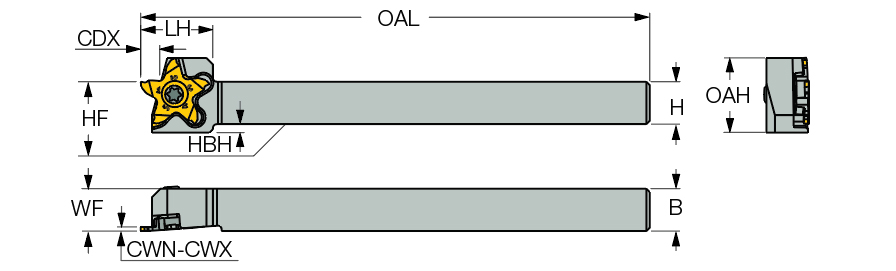

| Cutting Width Minimum (CWN) | 0.01″ | Head Length (LH) | 0.669″ |
| Cutting Width Maximum (CWX) | 1/8″ | Overall Length (OAL) | 4.724″ |
| Cutting Depth Maximum (CDX) | 0.157″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 1″ | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Parting | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 1″ | Body Material | Steel |
| Functional Width (WF) | 1″ | Measurement Type | Inch |
Product Features
| Family Description | Tools carrying PENTACUT-17 inserts (with 5 cutting edges) for grooving, parting, and recessing next to high shoulders on small diameter parts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.408
