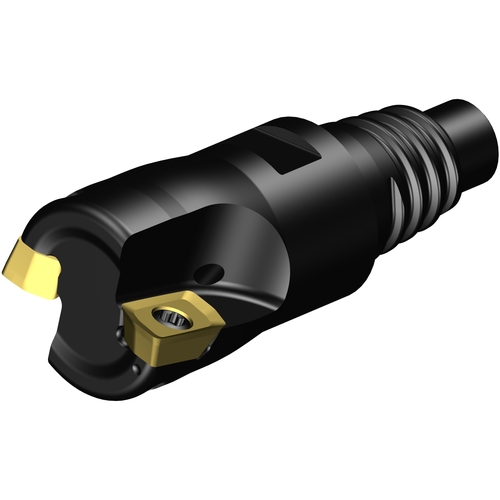

R390-0137EH12-07L COROMILL 390
Indexable End Mill; 13.7 mm Dia. × 5.8 mm LOC × 11.7 mm Shank Dia. × 33.8 mm OAL ; Threaded Shank
| Cutting Diameter (DC/DCX) | 13.7 mm | Connection Diameter Machine Side (DCONMS) | 11.7 mm |
| Cutting Diameter (DC) | 13.7 mm | Head Length (LH) | 20 mm |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 5.8 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 33.8 mm | Model Number | R390-0137EH12-07L |
| Shank Type | Threaded |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.276
