1/2X1-1/4X3-1/4 EM 4FL TA

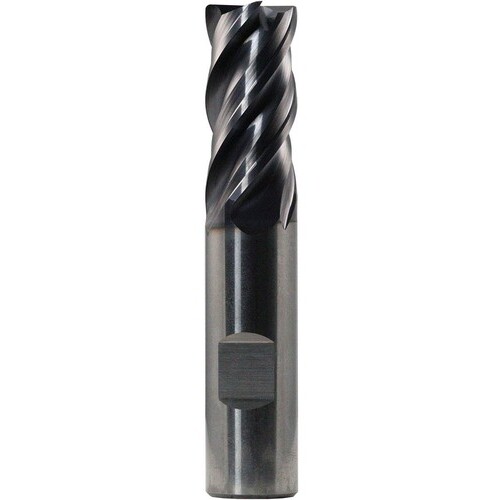

SQ End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3-1/4″ OAL ; 0.03″ RE ; 4 FL ; 2″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/2″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Usable Length (LU) | 2″ |
| Overall Length (OAL) | 3-1/4″ | Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.5″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.294
