ZAPC 1/4 3/4 FL .030TX

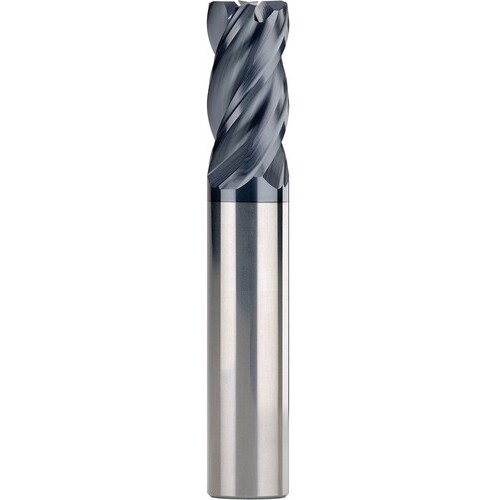

SQ End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0.03″ RE ; 4 FL ; 1-3/4″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/4″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3/4″ | Usable Length (LU) | 1-3/4″ |
| Overall Length (OAL) | 2-1/2″ | Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.25″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.06
