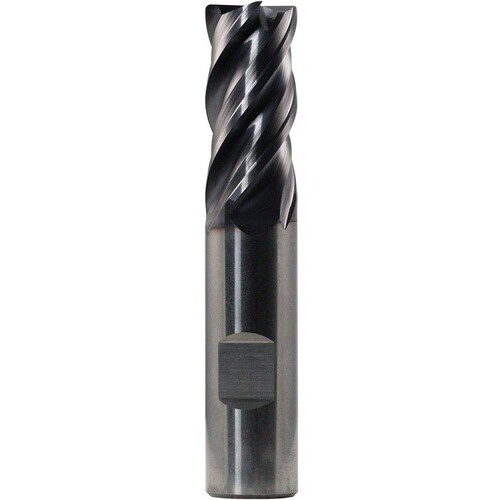

7/16 End Mill 4FL .020R TA - Z-CARB HTA 7/16x7/16x1x2-3/4
SQ End Mill; 7/16″ Dia. × 1″ LOC × 7/16″ Shank Dia. × 2-3/4″ OAL ; 0.02″ RE ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 7/16″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1″ | Usable Length (LU) | 1-3/4″ |
| Overall Length (OAL) | 2-3/4″ | Corner Radius (RE) | 0.02″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.4375″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.152
