C6 GHAIL-25
Grooving Toolholder; 63 mm Shank Dia. × 85 mm OAL ; Steel

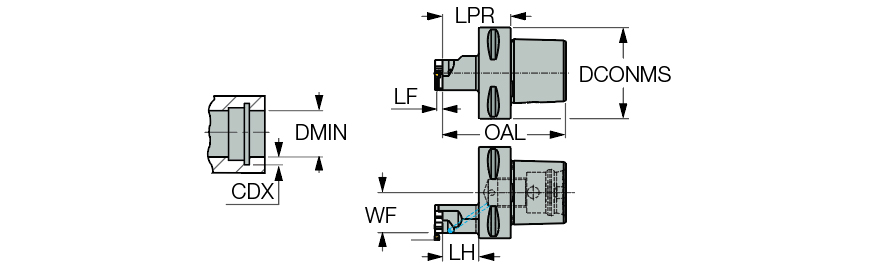

| Minimum Bore Diameter (DMIN) | 25 mm | Connection Diameter Machine Side (DCONMS) | 63 mm |
| Functional Width (WF) | 31.5 mm | Coolant Supply Property (CSP) | External |
| Head Length (LH) | 25 mm | Body Material | Steel |
| Overall Length (OAL) | 85 mm | Measurement Type | Metric |
Product Features
| Family Description | Boring bars for internal grooving and turning with CAMFIX (ISO 26623-1 standard) exchangeable shanks. | Country of Origin | Israel |
| Remarks | DMIN, CDX, LF data present in GAIR, GEAIR adapters |
Shipping Info
Package Weight
0.01
