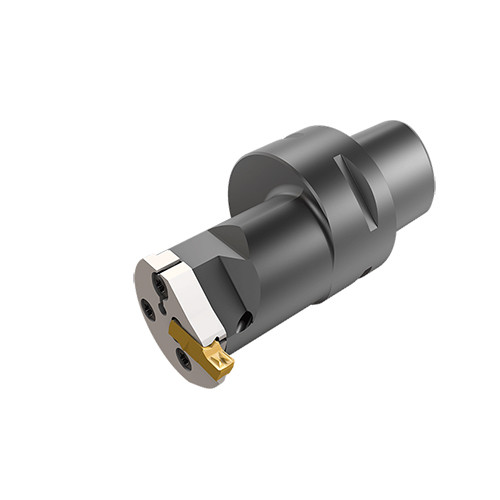

C4 GHAIR-25

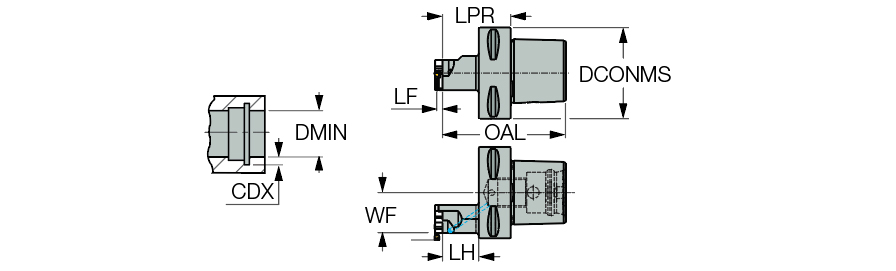

| Minimum Bore Diameter (DMIN) | 0.984″ | Connection Diameter Machine Side (DCONMS) | 1.575″ |
| Functional Width (WF) | 0.787″ | Coolant Supply Property (CSP) | External |
| Head Length (LH) | 0.984″ | Body Material | Steel |
| Overall Length (OAL) | 2.811″ | Measurement Type | Inch |
Product Features
| Family Description | Boring bars for internal grooving and turning with CAMFIX (ISO 26623-1 standard) exchangeable shanks. | Country of Origin | Israel |
| Remarks | DMIN, CDX, LF data present in GAIR, GEAIR adapters |
Shipping Info
Package Weight
0.765
