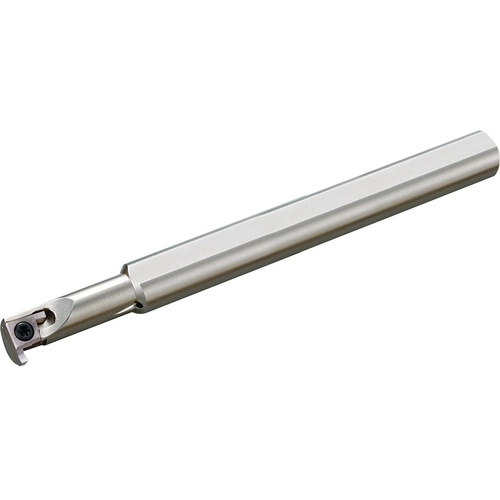

SIGER 1210BEH INT GROOV

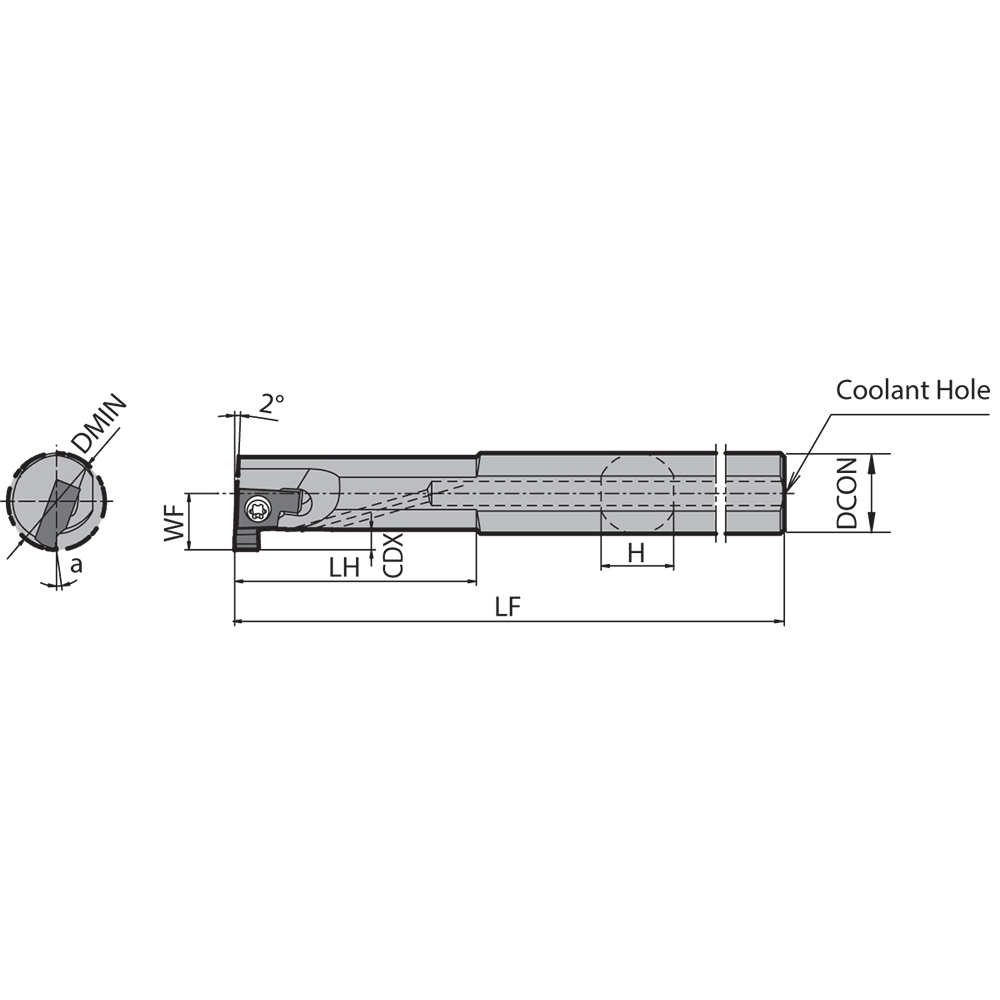

| Cutting Width Minimum (CWN) | 1 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 3 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 2.2 mm | Application | Grooving |
| Shank Height (H) | 9 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 12 mm | Series/List # | SIGE |
| Head Length (LH) | 30 mm | Measurement Type | Metric |
| Overall Length (OAL) | 125 mm | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
Product Features
| Family Description | Alternate Manufacture # SIGER1210BEH | Country of Origin | Japan |
Shipping Info
Package Weight
.2491
Related Documentation
