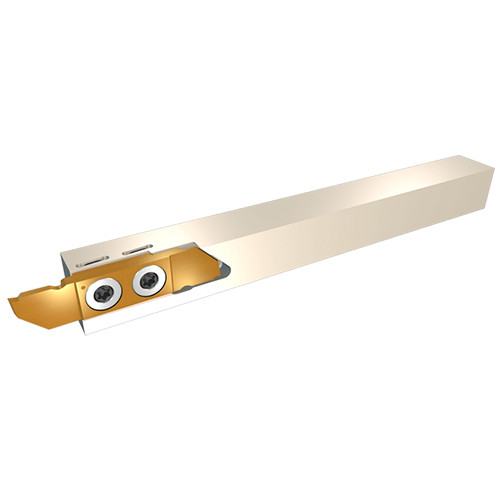

SCHR 16-41BF
Grooving Toolholder ; 4.921″ OAL ; 0.63″ Shank Height ; 0.63″ Shank Width ; 0.039″ CW Min. ; 0.118″ CW Max. ; 0.433″ Max Depth ; Steel

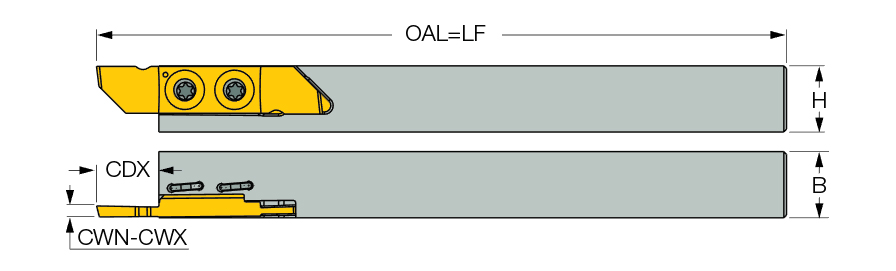

| Cutting Width Minimum (CWN) | 0.039″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.118″ | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Ext. Turning | Parting | Threading (Ext.) Groove Turn T | |
| Cutting Depth Maximum (CDX) | 0.433″ | Body Material | Steel |
| Shank Height (H) | 0.63″ | Tool Type | Turn-Groove Tools |
| Shank Width (B) | 0.63″ | Measurement Type | Inch |
| Overall Length (OAL) | 4.921″ |
Product Features
| Family Description | Grooving and turning tools with back and front clamping for Swiss-type and automatic machines. | Country of Origin | Israel |
Shipping Info
Package Weight
0.738
