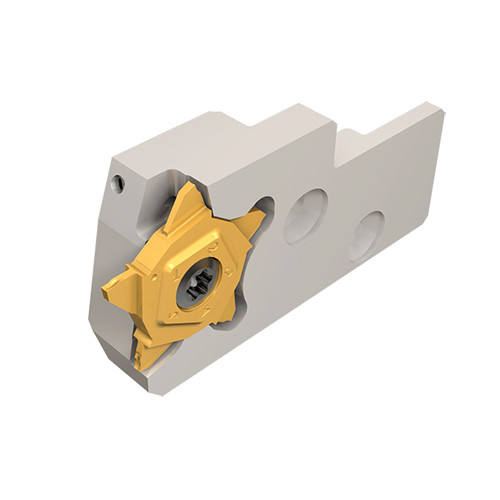

PCAD 24LE-JHP
Grooving Toolholder ; 2.177″ OAL ; 0.02″ CW Min. ; 1/8″ CW Max. ; Steel

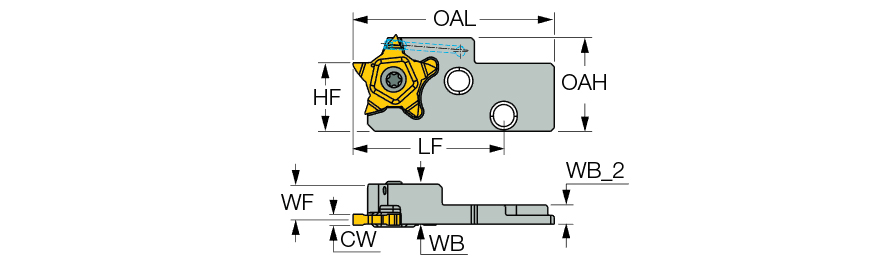

| Cutting Width Minimum (CWN) | 0.02″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 1/8″ | Application | | Ext. Grooving | Parting | |
| Body Width (WB) | 0.209″ | Body Material | Steel |
| Functional Width (WF) | 0.205″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.177″ |
Product Features
| Family Description | Parting and grooving adapters with channels for high-pressure coolant, carrying PENTA 24 inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.183
