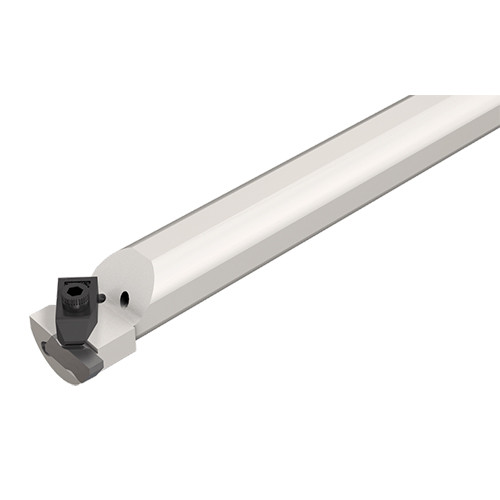

A16-FLER3
Grooving Toolholder; 1″ Shank Dia. × 12″ OAL ; Steel

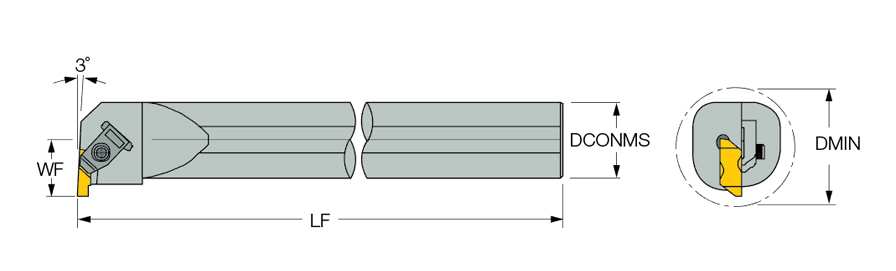

| Cutting Depth Maximum (CDX) | 0″ | Coolant Supply Property (CSP) | External |
| Minimum Bore Diameter (DMIN) | 1.38″ | Application | | Int. Grooving | Int. Profiling | Threading (Int.) | |
| Functional Width (WF) | 0.69″ | Body Material | Steel |
| Head Length (LH) | 0″ | Tool Type | Turn-Groove Tools |
| Overall Length (OAL) | 12″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ |
Product Features
| Family Description | Internal grooving and threading bars with coolant channels. | Country of Origin | USA |
| Remarks | Use left-hand inserts on right-hand tools and vice versa |
Shipping Info
Package Weight
1.5
