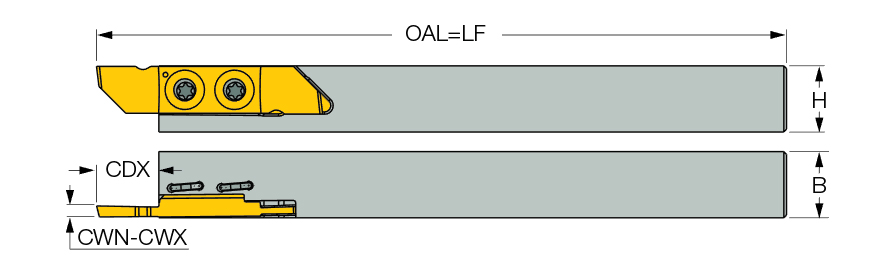

SCHR 12-41BF
Grooving Toolholder ; 125 mm OAL ; 12 mm Shank Height ; 12 mm Shank Width ; 1 mm CW Min. ; 3 mm CW Max. ; 11 mm Max Depth ; Steel
| Cutting Width Minimum (CWN) | 1 mm | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 3 mm | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Ext. Turning | Parting | Threading (Ext.) Groove Turn T | |
| Cutting Depth Maximum (CDX) | 11 mm | Body Material | Steel |
| Shank Height (H) | 12 mm | Tool Type | Turn-Groove Tools |
| Shank Width (B) | 12 mm | Measurement Type | Metric |
| Overall Length (OAL) | 125 mm |
Product Features
| Family Description | Grooving and turning tools with back and front clamping for Swiss-type and automatic machines. | Country of Origin | Israel |
Shipping Info
Package Weight
0.529
