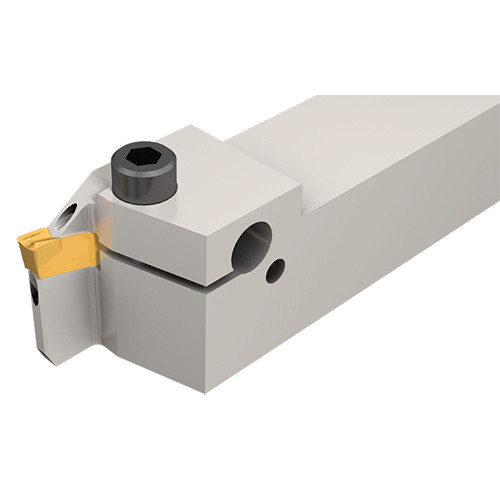

GHDL 20-4-JHP-MC
Grooving Toolholder ; 110 mm OAL ; 20 mm Shank Height ; 20 mm Shank Width ; 4 mm CW Min. ; 5 mm CW Max. ; 10 mm Max Depth ; Steel

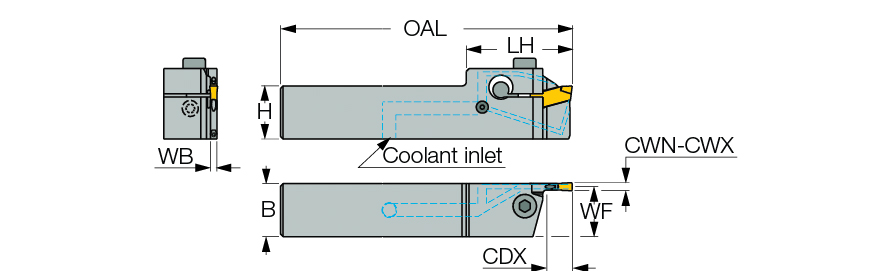

| Cutting Width Minimum (CWN) | 4 mm | Head Length (LH) | 40 mm |
| Cutting Width Maximum (CWX) | 5 mm | Overall Length (OAL) | 110 mm |
| Cutting Depth Maximum (CDX) | 10 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Body Width (WB) | 3.2 mm | Measurement Type | Metric |
| Functional Width (WF) | 18.4 mm |
Product Features
| Family Description | Grooving and turning tools with bottom inlet JETCUT coolant channels. | Country of Origin | Israel |

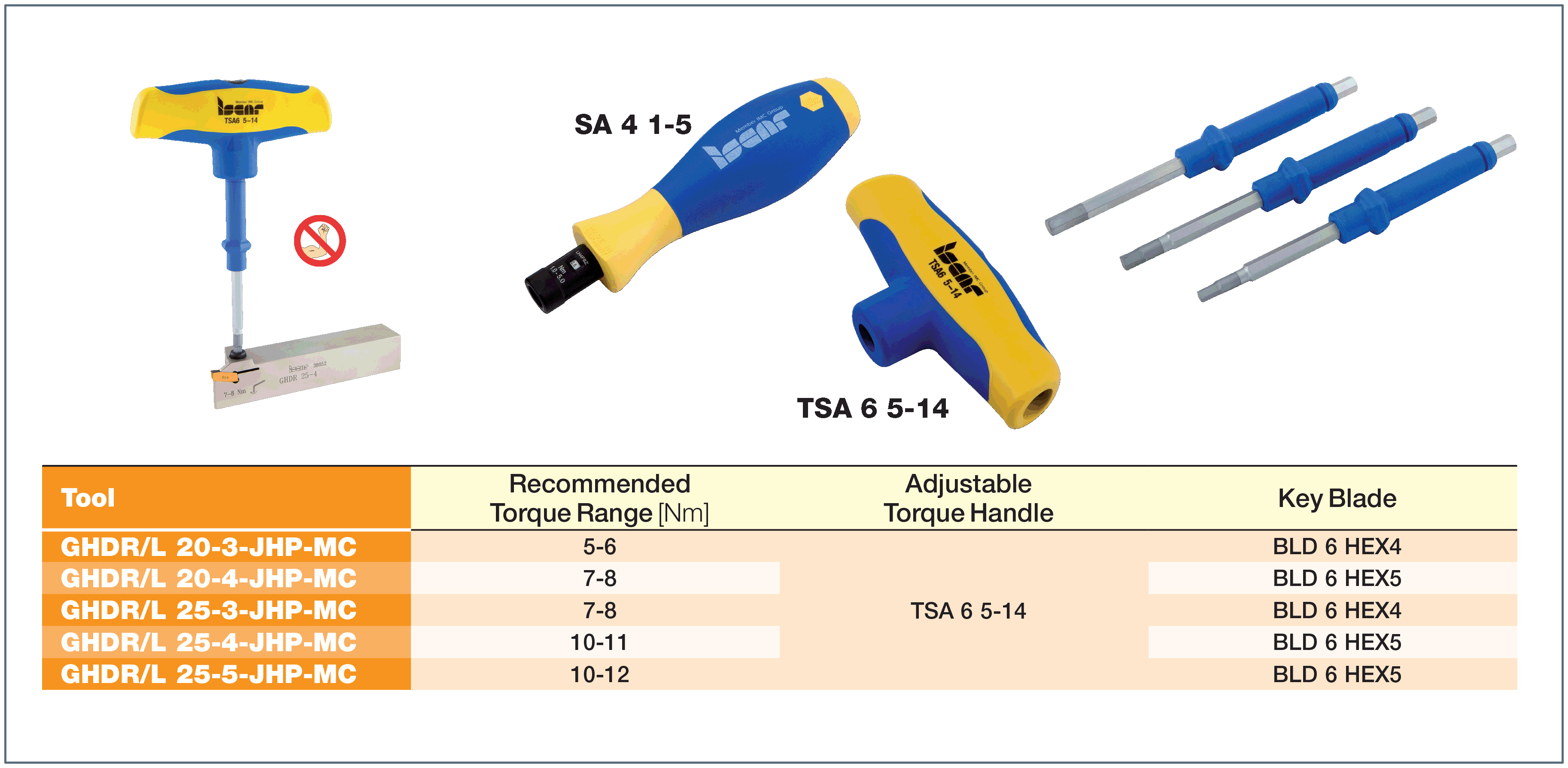

| Remarks | For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance When using GIVR/L inserts, tool holder's seat needs to be modified To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
0.776
