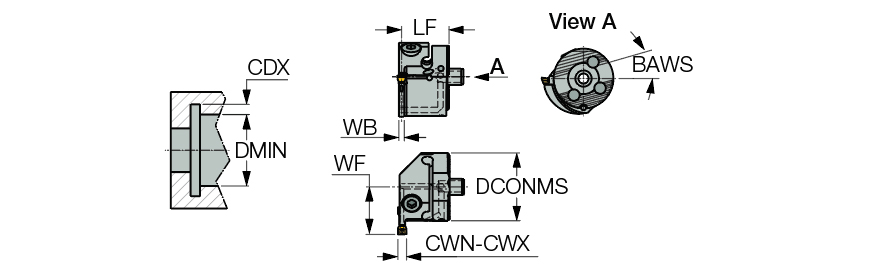

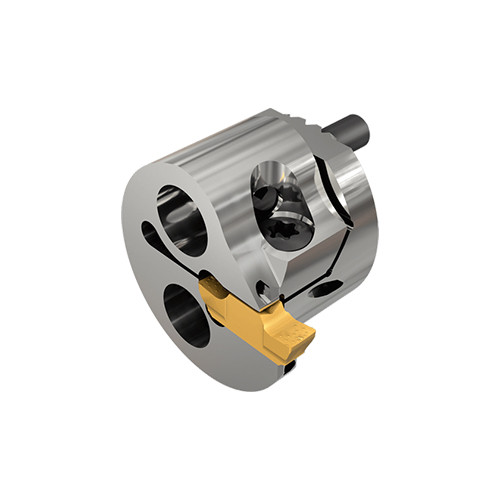

AVC-D25-GEAIR-3
Grooving Toolholder ; 0.984″ Shank Dia. ; 0.094″ CW Min. ; 1/8″ CW Max. ; 0.157″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.094″ | Connection Diameter Machine Side (DCONMS) | 0.984″ |
| Cutting Width Maximum (CWX) | 1/8″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.157″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Body Width (WB) | 0.079″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.22″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 0.689″ | Measurement Type | Inch |
Product Features
| Family Description | Internal grooving, turning and threading adapters for GEMI and GEPI inserts. | Country of Origin | Israel |
| Remarks | Using the adapters with CAMFIX & SH-D holders is possible in case the machine has an option to rotate the holders |
Shipping Info
Package Weight
0.154
