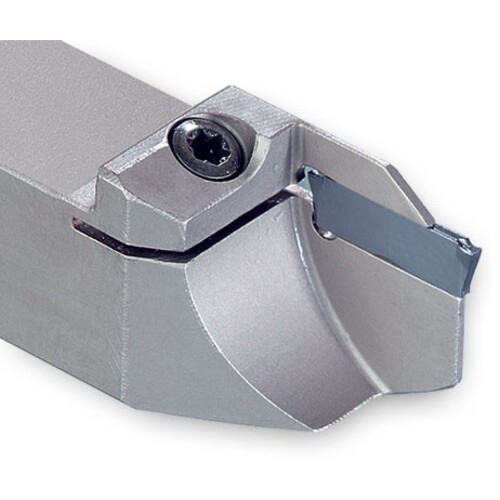

TTER20-45-3SH
Grooving Toolholder ; 20 mm Shank Height ; 20 mm Shank Width ; 0.118″ CW Min. ; 0.126″ CW Max. ; 0.787″ Max Depth ; Right Hand ; Steel
| Cutting Width Minimum (CWN) | 0.118″ | Head Length (LH) | 30.5 mm |
| Cutting Width Maximum (CWX) | 0.126″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.787″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Body Width (WB) | 2.4 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 18.8 mm | Measurement Type | Metric |
| Functional Length (LF) | 125 mm | Insert Seat Size Code (SSC) | 3 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.881
