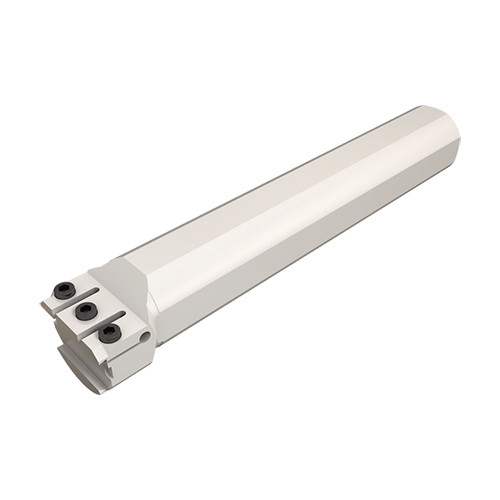

GHIC 40-70

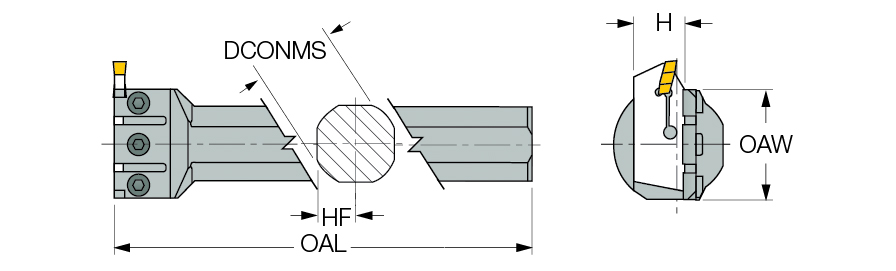

Grooving Toolholder; 26 mm × 53 mm Shank Size 40 mm Shank Dia. × 260 mm OAL ; Steel
| Shank Height (H) | 26 mm | Coolant Supply Property (CSP) | External |
| Shank Width (B) | 53 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 70 mm | Tool Type | Round Shanks |
| Overall Length (OAL) | 260 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
Product Features
| Family Description | CUT-GRIP holders for internal grooving and turning blades, DMIN=70 mm. | Country of Origin | Israel |
| Remarks | For both right and left hand applications |
Shipping Info
Package Weight
5.701
